GMV

·Optimized structure for the general valve
 solution to obtain excellent performance
 and smooth surface

·Applied for far-ranging uses from general
 to standard engineering resins

·Adjustable nozzle length upon request
 by the customer

·Various designs of gates provided in
 standardized formats

·Replaceable screw-type tip provided

·System structure for faster and effective
 maintenance

·Abrasion-resistant special Dura Tip
(optional) provided to deal with
 glass-containing resins

GMV System / General Valve Solution

  • Exellent Heat Stability

    Exellent Heat stability and Pin Performance
    ensures the optima lgate conditions

  • Advanced Pin Guide Ring

    More Advanced special design to strongly
    prevent the material leakage and minimize
    the heat exchange

  • Quick Color Change

    Quick Color change VC structure
    on the gate area

  • Quick & Easy Maintenance

    Quick & Easy Maintenance with Front
    Exchange Structure for Heater and T/C

  • Wide Range of Selections

    Wide Range of Selections, Nozzle Length,
    Gate Bushes, Tips and Cylinders

  • Cooling Gate Bush

    Cooling Gate bush is supported

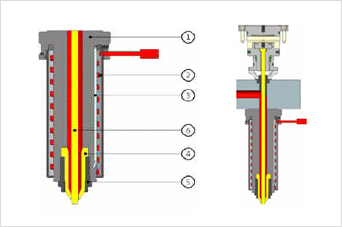

GMV STRUCTURE

  •   GMV-VC
    1 Nozzle Body
    2 Coil Heater
    3 Thermo Couple
    4 VC Tip
    5 Nozzle Union
    6 Valve Pin
  •   GMV-VC-Dura
    1 Nozzle Body
    2 Coil Heater
    3 Thermo Couple
    4 VC-Dura In Tip
    5 VC-Out Tip
    6 Nozzle Union
    7 Valve Pin

GMV Spac

TYPE SIZE CHANNEL DIA GATE
OPEN OPEN
CCCA
GMV 20 8 1.2 / 1.5 / 2.0
25 10 1.5 / 2.0 / 2.5
35 12 2.5 / 3.0 / 3.5 / 4.0
45 22 5.0 / 6.0 / 7.0 / 8.0

Minimum Gate
Piutch of GMV

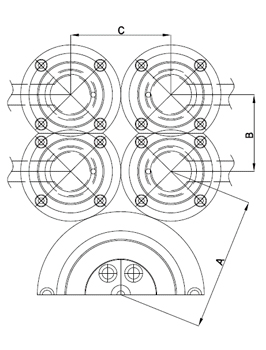

  • - VALVE TYPE NL23.33 (Without HT)
    NOZZLE SIZE N/L and GATE GATE RECTANGLE GATE SQUARE
    A B C
    GMV-20 105 60 80
    GMV-25 105 60 80
    GMV-35 105 63 80
    GMV-45 120 90 110

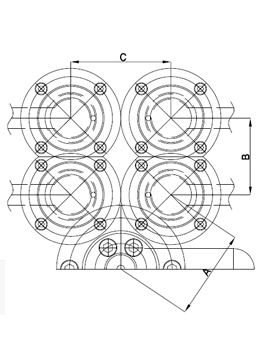

  • - VALVE TYPE NL25.35 (With HT)
    NOZZLE SIZE N/L and GATE GATE RECTANGLE GATE SQUARE
    A B C
    GMV-20 75 60 80
    GMV-25 75 60 80
    GMV-35 75 63 80
    GMV-45 90 90 110
    ENV16,19 75 60 80
