HotPlus, wants to say Quality of

Products

SNV

·최적화된 구조적 열적 기술 기반의
Single Valve Solution

·수지유로와 핀작동부 분리구조를 통한
Easy & Quick 유지보수

·Straight 핀 적용하여 Gate부 제품표면 품질과
내구성 향상

SNV System /
Single Valve Solution

  • 우수한 제품 품질

    우수한 스트레이트핀 Operation 작동으로
    미려하고 깨끗한 GATE 품질 확보

  • 내구성

    노즐과 실린더부의 분리된 구조로 내구성
    확보 및 신속한 유지보수 기능 구조

  • 신속한 유지보수

    탑커버 신속 분리, 신속한 유지보수를 위한
    전면 Heater, T/C 교환 구조

  • 신속한 칼라체인지

    신속한 Color change에 적합한
    VC 게이트
    구조

  • 냉각부시

    냉각부시 적용가능

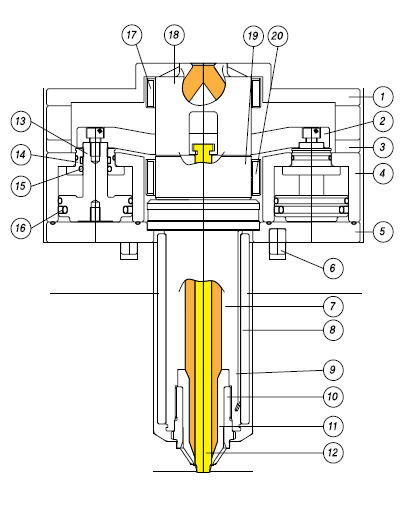

SNV Structure

  • 1 Top Cover
    2 Cylinder Guide Bar
    3 Housing
    4 Cylinder Housing
    5 Bottom
    6 Lock Pin
    7 Nozzle Body
    8 Nozzle Coil Heater
    9 Nozzle Thermpcouple
    10 Nozzle Tip Bush
    11 Nozzle Tip
    12 Valve pin
    13 Piston
    14 Piston Bottom
    15 Piston Bottom 'O'ring
    16 Piston 'O'ring+Glyd Ring
    17 Head Body Tube Heater
    18 Head Body
    19 Pin Guide Bush
    20 Pin Guide Bush Tube Heater
